springmvc+mybatis+spring+freemarker+maven示例项目

框架版本

框架	版本
springmvc	4.0.5.RELEASE
mybatis	3.2.7
spring	4.0.5.RELEASE
freemarker	2.3.20
maven	3.0

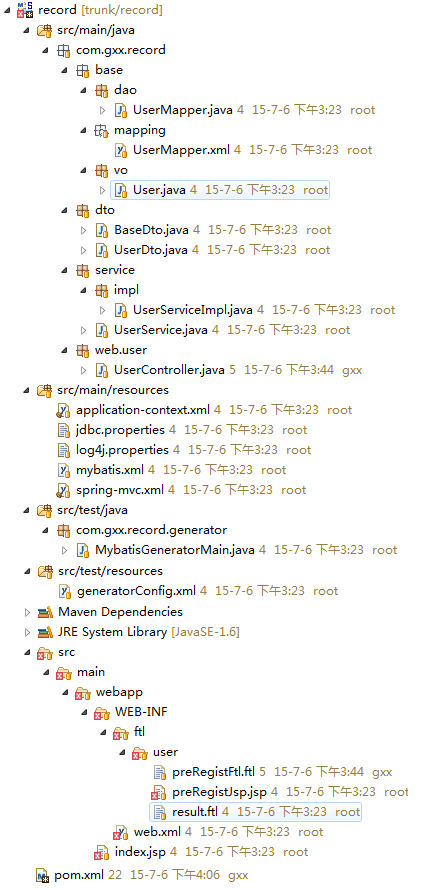

项目结构

源代码

UserMapper.java

UserMapper.java

package com.gxx.record.base.dao;

import org.springframework.stereotype.Repository;

import com.gxx.record.base.vo.User;

@Repository
public interface UserMapper {
    int deleteByPrimaryKey(Integer id);

    int insert(User record);

    int insertSelective(User record);

    User selectByPrimaryKey(Integer id);

    int updateByPrimaryKeySelective(User record);

    int updateByPrimaryKey(User record);

    /**
     * 根据姓名查用户
     * @param name
     * @return
     */
    User getUserByName(String name);
}

UserMapper.xml

UserMapper.xml

<?xml version="1.0" encoding="UTF-8" ?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd" >
<mapper namespace="com.gxx.record.base.dao.UserMapper" >
  <resultMap id="BaseResultMap" type="com.gxx.record.base.vo.User" >
    <id column="id" property="id" jdbcType="INTEGER" />
    <result column="name" property="name" jdbcType="VARCHAR" />
    <result column="password" property="password" jdbcType="VARCHAR" />
    <result column="create_date" property="createDate" jdbcType="VARCHAR" />
    <result column="create_time" property="createTime" jdbcType="VARCHAR" />
  </resultMap>
  <sql id="Base_Column_List" >
    id, name, password, create_date, create_time
  </sql>
  <select id="selectByPrimaryKey" resultMap="BaseResultMap" parameterType="java.lang.Integer" >
    select
    <include refid="Base_Column_List" />
    from user
    where id = #{id,jdbcType=INTEGER}
  </select>
  <delete id="deleteByPrimaryKey" parameterType="java.lang.Integer" >
    delete from user
    where id = #{id,jdbcType=INTEGER}
  </delete>
  <insert id="insert" parameterType="com.gxx.record.base.vo.User" >
    insert into user (id, name, password,
      create_date, create_time)
    values (#{id,jdbcType=INTEGER}, #{name,jdbcType=VARCHAR}, #{password,jdbcType=VARCHAR},
      #{createDate,jdbcType=VARCHAR}, #{createTime,jdbcType=VARCHAR})
  </insert>
  <insert id="insertSelective" parameterType="com.gxx.record.base.vo.User" >
    insert into user
    <trim prefix="(" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        id,
      </if>
      <if test="name != null" >
        name,
      </if>
      <if test="password != null" >
        password,
      </if>
      <if test="createDate != null" >
        create_date,
      </if>
      <if test="createTime != null" >
        create_time,
      </if>
    </trim>
    <trim prefix="values (" suffix=")" suffixOverrides="," >
      <if test="id != null" >
        #{id,jdbcType=INTEGER},
      </if>
      <if test="name != null" >
        #{name,jdbcType=VARCHAR},
      </if>
      <if test="password != null" >
        #{password,jdbcType=VARCHAR},
      </if>
      <if test="createDate != null" >
        #{createDate,jdbcType=VARCHAR},
      </if>
      <if test="createTime != null" >
        #{createTime,jdbcType=VARCHAR},
      </if>
    </trim>
  </insert>
  <update id="updateByPrimaryKeySelective" parameterType="com.gxx.record.base.vo.User" >
    update user
    <set >
      <if test="name != null" >
        name = #{name,jdbcType=VARCHAR},
      </if>
      <if test="password != null" >
        password = #{password,jdbcType=VARCHAR},
      </if>
      <if test="createDate != null" >
        create_date = #{createDate,jdbcType=VARCHAR},
      </if>
      <if test="createTime != null" >
        create_time = #{createTime,jdbcType=VARCHAR},
      </if>
    </set>
    where id = #{id,jdbcType=INTEGER}
  </update>
  <update id="updateByPrimaryKey" parameterType="com.gxx.record.base.vo.User" >
    update user
    set name = #{name,jdbcType=VARCHAR},
      password = #{password,jdbcType=VARCHAR},
      create_date = #{createDate,jdbcType=VARCHAR},
      create_time = #{createTime,jdbcType=VARCHAR}
    where id = #{id,jdbcType=INTEGER}
  </update>

  <select id="getUserByName" resultMap="BaseResultMap" parameterType="java.lang.String" >
    select
    <include refid="Base_Column_List" />
    from user
    where name = #{name,jdbcType=VARCHAR}
  </select>
</mapper>

User.java

User.java

package com.gxx.record.base.vo;

public class User {
    private Integer id;

    private String name;

    private String password;

    private String createDate;

    private String createTime;

    public Integer getId() {
        return id;
    }

    public void setId(Integer id) {
        this.id = id;
    }

    public String getName() {
        return name;
    }

    public void setName(String name) {
        this.name = name == null ? null : name.trim();
    }

    public String getPassword() {
        return password;
    }

    public void setPassword(String password) {
        this.password = password == null ? null : password.trim();
    }

    public String getCreateDate() {
        return createDate;
    }

    public void setCreateDate(String createDate) {
        this.createDate = createDate == null ? null : createDate.trim();
    }

    public String getCreateTime() {
        return createTime;
    }

    public void setCreateTime(String createTime) {
        this.createTime = createTime == null ? null : createTime.trim();
    }
}

BaseDto.java

BaseDto.java

package com.gxx.record.dto;

/**
 * <dl>
 *    <dt><b>Title:</b></dt>
 *    <dd>
 *    	基础传输对象
 *    </dd>
 *    <dt><b>Description:</b></dt>
 *    <dd>
 *    	<p>none
 *    </dd>
 * </dl>
 *
 * @author Administrator
 * @version 1.0, 2015年6月18日
 * @since record
 *
 */
public class BaseDto {

	String message;//信息
	boolean success;//是否成功

	public String getMessage() {
		return message;
	}
	public void setMessage(String message) {
		this.message = message;
	}
	public boolean getSuccess() {
		return success;
	}
	public void setSuccess(boolean success) {
		this.success = success;
	}
}

UserDto.java

UserDto.java

package com.gxx.record.dto;
/**
 * <dl>
 *    <dt><b>Title:</b></dt>
 *    <dd>
 *    	用户传输对象
 *    </dd>
 *    <dt><b>Description:</b></dt>
 *    <dd>
 *    	<p>none
 *    </dd>
 * </dl>
 *
 * @author Administrator
 * @version 1.0, 2015年6月18日
 * @since record
 *
 */
public class UserDto extends BaseDto {

	private Integer id;//id
    private String name;//姓名
    private String password;//密码
    private String createDate;//创建日期
    private String createTime;//创建时间

	public Integer getId() {
		return id;
	}
	public void setId(Integer id) {
		this.id = id;
	}
	public String getName() {
		return name;
	}
	public void setName(String name) {
		this.name = name;
	}
	public String getPassword() {
		return password;
	}
	public void setPassword(String password) {
		this.password = password;
	}
	public String getCreateDate() {
		return createDate;
	}
	public void setCreateDate(String createDate) {
		this.createDate = createDate;
	}
	public String getCreateTime() {
		return createTime;
	}
	public void setCreateTime(String createTime) {
		this.createTime = createTime;
	}
}

UserService.java

UserService.java

package com.gxx.record.service;

import com.gxx.record.base.vo.User;

/**
 * <dl>
 *    <dt><b>Title:</b></dt>
 *    <dd>
 *    	用户服务接口
 *    </dd>
 *    <dt><b>Description:</b></dt>
 *    <dd>
 *    	<p>none
 *    </dd>
 * </dl>
 *
 * @author Administrator
 * @version 1.0, 2015年6月18日
 * @since record
 *
 */
public interface UserService {
	/**
	 * 新增用户
	 * @param user
	 */
	public void doSaveUser(User user);

	/**
	 * 根据姓名查用户
	 * @param name
	 * @return
	 */
	public User getUserByName(String name);
}

UserServiceImpl.java

UserServiceImpl.java

package com.gxx.record.service.impl;

import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Service;

import com.gxx.record.base.dao.UserMapper;
import com.gxx.record.base.vo.User;
import com.gxx.record.service.UserService;

/**
 * <dl>
 *    <dt><b>Title:</b></dt>
 *    <dd>
 *    	用户服务实现类
 *    </dd>
 *    <dt><b>Description:</b></dt>
 *    <dd>
 *    	<p>none
 *    </dd>
 * </dl>
 *
 * @author Administrator
 * @version 1.0, 2015年6月18日
 * @since record
 *
 */
@Service("userService")
public class UserServiceImpl implements UserService {

	@Autowired
	private UserMapper userDao;

	/**
	 * 新增用户
	 * @param user
	 */
	public void doSaveUser(User user) {
		userDao.insert(user);
	}

	/**
	 * 根据姓名查用户
	 * @param name
	 * @return
	 */
	public User getUserByName(String name) {
		return userDao.getUserByName(name);
	}
}

UserController.java

UserController.java

package com.gxx.record.web.user;

import javax.servlet.http.HttpServletRequest;

import org.apache.log4j.Logger;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.stereotype.Controller;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestMethod;
import org.springframework.web.bind.annotation.ResponseBody;

import com.gxx.record.base.vo.User;
import com.gxx.record.dto.UserDto;
import com.gxx.record.service.UserService;

/**
 * QueryAllocateController负责查询调拨
 *
 * @author gxx
 */
@Controller
@RequestMapping("/user/")
public class UserController {
	/**
	 * 日志处理器
	 */
	private final Logger logger = Logger.getLogger(UserController.class);

	@Autowired
	private UserService userService;

	@RequestMapping(value = "/preRegistFtl", method = RequestMethod.GET)
	public String preRegistFtl() {
		return "user/preRegistFtl";
	}

	@RequestMapping(value = "/preRegistJsp", method = RequestMethod.GET)
	public String preRegistJsp() {
		return "user/preRegistJsp";
	}

	/**
	 * 注册
	 * @param request
	 * @param userDto
	 * @return
	 */
	@RequestMapping(value = "/registJsp",produces="application/json")
	public @ResponseBody UserDto registJsp(HttpServletRequest request, UserDto userDto) {
		logger.info("用户注册：姓名[" + userDto.getName() + "]，密码[" + userDto.getPassword() + "]");
		/**
		 * 1.判用户名是否存在
		 */
		User user = userService.getUserByName(userDto.getName());
		if(user != null){
			userDto.setSuccess(Boolean.FALSE.booleanValue());
			userDto.setMessage("用户名[" + userDto.getName() + "]已存在!");
			return userDto;
		}
		/**
		 * 2.创建用户对象 并 新增用户
		 */
		user = new User();
		user.setName(userDto.getName());
		user.setPassword(userDto.getPassword());
		user.setCreateDate("20150618");
		user.setCreateTime("000000");
		userService.doSaveUser(user);
		/**
		 * 3.返回结果
		 */
		userDto.setSuccess(Boolean.TRUE.booleanValue());
		userDto.setMessage("注册成功!");
		return userDto;
	}

	/**
	 * 注册
	 * @param request
	 * @param userDto
	 * @return
	 */
	@RequestMapping(value = "/registFtl")
	public String registFtl(HttpServletRequest request, UserDto userDto) {
		logger.info("用户注册：姓名[" + userDto.getName() + "]，密码[" + userDto.getPassword() + "]");
		/**
		 * 1.判用户名是否存在
		 */
		User user = userService.getUserByName(userDto.getName());
		if(user != null){
			userDto.setSuccess(Boolean.FALSE.booleanValue());
			userDto.setMessage("用户名[" + userDto.getName() + "]已存在!");
			return "user/result";
		}
		/**
		 * 2.创建用户对象 并 新增用户
		 */
		user = new User();
		user.setName(userDto.getName());
		user.setPassword(userDto.getPassword());
		user.setCreateDate("20150618");
		user.setCreateTime("000000");
		userService.doSaveUser(user);
		/**
		 * 3.返回结果
		 */
		userDto.setSuccess(Boolean.TRUE.booleanValue());
		userDto.setMessage("注册成功!");
		return "user/result";
	}
}

application-context.xml

application-context.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xmlns:aop="http://www.springframework.org/schema/aop"
	xmlns:context="http://www.springframework.org/schema/context" xmlns:tx="http://www.springframework.org/schema/tx"
	xmlns:jpa="http://www.springframework.org/schema/data/jpa"
	xmlns:security="http://www.springframework.org/schema/security"
	xsi:schemaLocation="
		http://www.springframework.org/schema/aop
		http://www.springframework.org/schema/aop/spring-aop-4.0.xsd
		http://www.springframework.org/schema/security
		http://www.springframework.org/schema/security/spring-security-3.2.xsd
		http://www.springframework.org/schema/beans
		http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
		http://www.springframework.org/schema/data/jpa
		http://www.springframework.org/schema/data/jpa/spring-jpa-1.3.xsd
		http://www.springframework.org/schema/tx
		http://www.springframework.org/schema/tx/spring-tx-4.0.xsd
		http://www.springframework.org/schema/context
		http://www.springframework.org/schema/context/spring-context-4.0.xsd">

	<!-- Activates annotation-based bean configuration -->
	<context:annotation-config />

	<!-- Scans for application @Components to deploy -->
	<context:component-scan base-package="com.gxx.record" />

	<!-- 数据库配置文件位置 -->
	<context:property-placeholder location="classpath:/jdbc.properties" />

	<!-- 配置dbcp数据源 -->
	<bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"
		destroy-method="close">
		<property name="driverClassName" value="${jdbc.driverClassName}" />
		<property name="url" value="${jdbc.url}" />
		<property name="username" value="${jdbc.username}" />
		<property name="password" value="${jdbc.password}" />
	</bean>

	<!-- 使用JDBC事务 -->
	<bean id="transactionManager"
		class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
		<property name="dataSource" ref="dataSource" />
	</bean>

	<!-- AOP配置事物 -->
	<tx:advice id="transactionAdvice" transaction-manager="transactionManager">
		<tx:attributes>
			<tx:method name="query*" read-only="true" propagation="REQUIRED" />
			<tx:method name="delete*"  propagation="REQUIRED" />
			<tx:method name="update*" propagation="REQUIRED" />
			<tx:method name="insert*" propagation="REQUIRED" />
			<tx:method name="*" propagation="REQUIRED" />
		</tx:attributes>
	</tx:advice>

	<!-- 配置AOP切面 -->
	<aop:config>
        <aop:pointcut id="transactionPointcut" expression="execution(* com.gxx.record.service.*.*(..))"/>
        <aop:advisor pointcut-ref="transactionPointcut" advice-ref="transactionAdvice"/>
    </aop:config>


	<!-- 使用annotation注解方式配置事务 -->
	<tx:annotation-driven transaction-manager="transactionManager" />

	<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
		<property name="dataSource" ref="dataSource" />
		<property name="configLocation" value="classpath:mybatis.xml"></property>
		<property name="mapperLocations" value="classpath:com/gxx/record/base/mapping/*.xml"></property>
	</bean>

	<!-- 配置SQLSession模板 -->
	<bean id="sqlSession" class="org.mybatis.spring.SqlSessionTemplate">
		<constructor-arg index="0" ref="sqlSessionFactory" />
	</bean>

	<!--扫描basePackage下所有以@Repository注解的接口  -->
	<bean class="org.mybatis.spring.mapper.MapperScannerConfigurer">
        <property name="sqlSessionFactoryBeanName" value="sqlSessionFactory" />
        <property name="basePackage" value="com.gxx.record"/>
        <property name="annotationClass" value="org.springframework.stereotype.Repository"/>
    </bean>
</beans>

jdbc.properties

jdbc.properties

jdbc.driverClassName=com.mysql.jdbc.Driver
jdbc.url=jdbc:mysql://127.0.0.1:3306/record?useUnicode=true&characterEncoding=UTF-8&useOldAlias
jdbc.username=root
jdbc.password=root

log4j.properties

log4j.properties

# Output pattern : date [thread] priority category - message   FATAL 0  ERROR 3  WARN 4  INFO 6  DEBUG 7
log4j.rootLogger=INFO, Console, RollingFile

#Console
log4j.appender.Console=org.apache.log4j.ConsoleAppender
log4j.appender.Console.layout=org.apache.log4j.PatternLayout
log4j.appender.Console.layout.ConversionPattern=%d [%t] %-5p [%c] - %m%n

#RollingFile
log4j.appender.RollingFile=org.apache.log4j.DailyRollingFileAppender
log4j.appender.RollingFile.File=D:/logs/record.log
log4j.appender.RollingFile.layout=org.apache.log4j.PatternLayout
log4j.appender.RollingFile.layout.ConversionPattern=%d [%t] %-5p [%c] - %m%n

mybatis.xml

mybatis.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE configuration PUBLIC "-//mybatis.org//DTD Config 3.0//EN" "http://mybatis.org/dtd/mybatis-3-config.dtd">
<configuration>
	<settings>
		<setting name="cacheEnabled" value="true" />
		<setting name="lazyLoadingEnabled" value="true" />
		<setting name="multipleResultSetsEnabled" value="true" />
		<setting name="useColumnLabel" value="true" />
		<setting name="defaultExecutorType" value="REUSE" />
		<setting name="defaultStatementTimeout" value="25000" />
	</settings>
</configuration>

spring-mvc.xml

spring-mvc.xml

<?xml version="1.0"  encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xmlns:context="http://www.springframework.org/schema/context"
	xmlns:p="http://www.springframework.org/schema/p"
	xmlns:mvc="http://www.springframework.org/schema/mvc"
	xmlns:util="http://www.springframework.org/schema/util"
	xmlns:cache="http://www.springframework.org/schema/cache"
	xsi:schemaLocation="http://www.springframework.org/schema/beans	http://www.springframework.org/schema/beans/spring-beans-4.0.xsd
				http://www.springframework.org/schema/util http://www.springframework.org/schema/util/spring-util-4.0.xsd
                http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.0.xsd
                http://www.springframework.org/schema/cache http://www.springframework.org/schema/cache/spring-cache-4.0.xsd
                http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.0.xsd">

	<!-- XML转码器 -->
	<bean id="fmXmlEscape" class="freemarker.template.utility.XmlEscape" />

	<!-- 配置freeMarker的模板路径 -->
	<bean id="freemarkerConfig" class="org.springframework.web.servlet.view.freemarker.FreeMarkerConfigurer">
		<property name="templateLoaderPath" value="/WEB-INF/ftl/" />
		<property name="freemarkerVariables">
			<map>
				<entry key="xml_escape" value-ref="fmXmlEscape" />
			</map>
		</property>
		<property name="freemarkerSettings">
			<props>
				<!-- <prop key="datetime_format">MM/dd/yyyy</prop> <prop key="number_format">0.######</prop> -->
				<prop key="defaultEncoding">UTF-8</prop>
				<!-- <prop key="template_update_delay">0</prop> -->
				<prop key="template_exception_handler">ignore</prop>
				<prop key="number_format">0.##</prop>
			</props>
		</property>
	</bean>

	<!-- 配置freeMarker视图解析器 -->
	<bean id="freeMarkerViewResolver" class="org.springframework.web.servlet.view.freemarker.FreeMarkerViewResolver">
		<property name="viewClass" value="org.springframework.web.servlet.view.freemarker.FreeMarkerView" />
		<property name="contentType" value="text/html;charset=UTF-8" />
		<property name="suffix" value=".ftl" />
		<property name="order" value="0"/>
		<property name="prefix" value="/" />

		<property name="requestContextAttribute" value="rc" />
		<property name="exposeRequestAttributes" value="true" />
		<property name="exposeSpringMacroHelpers" value="true" />
	</bean>

	<!-- jsp视图解析器 -->
	<bean id="jstlViewResolver" class="org.springframework.web.servlet.view.InternalResourceViewResolver">
		<property name="viewClass" value="org.springframework.web.servlet.view.JstlView" />
		<property name="prefix" value="/WEB-INF/ftl/" />
		<property name="suffix" value=".jsp" />
		<property name="order" value="2" />
	</bean>

	<!-- 扫描控制器类 -->
	<context:component-scan base-package="com.gxx.record" />

	<!-- 采用注解方式配置MVC -->
	<mvc:annotation-driven content-negotiation-manager="contentNegotiationManager">
	    <mvc:message-converters>
	    	<bean class="org.springframework.http.converter.StringHttpMessageConverter">
                <constructor-arg value="UTF-8" />
            </bean>
	        <bean class="org.springframework.http.converter.json.MappingJackson2HttpMessageConverter">
	            <!-- <property name="objectMapper" ref="jackson2ObjectMapperFactoryBean" />  -->
	            <property name="objectMapper">
                    <bean class="com.fasterxml.jackson.databind.ObjectMapper">
                        <property name="dateFormat">
                            <bean class="java.text.SimpleDateFormat">
                                <constructor-arg type="java.lang.String" value="yyyy-MM-dd HH:mm:ss" />
                            </bean>
                        </property>
                    </bean>
                </property>
	            <property name="supportedMediaTypes">
                    <list>
	                    <value>text/plain;charset=utf-8</value>
	                    <value>html/text;charset=utf-8</value>
		                <value>text/html;charset=utf-8</value>
		                <value>text/json;charset=utf-8</value>
		                <value>application/json;charset=utf-8</value>
                    </list>
                 </property>
	        </bean>
	    </mvc:message-converters>
	</mvc:annotation-driven>

	<!-- Supporty medieType Content Manager Config-->
	<bean id="contentNegotiationManager" class="org.springframework.web.accept.ContentNegotiationManagerFactoryBean">
	    <property name="favorPathExtension" value="false" />
	    <property name="favorParameter" value="true" />
	    <property name="mediaTypes">
	        <value>
	            atom=application/atom+xml
	            html=text/html
	            json=application/json
	            xml=application/xml
	            *=*/*
	        </value>
	    </property>
	</bean>
</beans>

MybatisGeneratorMain.java

MybatisGeneratorMain.java

package com.gxx.record.generator;

import java.io.File;
import java.io.IOException;
import java.sql.SQLException;
import java.util.ArrayList;
import java.util.List;

import org.mybatis.generator.api.MyBatisGenerator;
import org.mybatis.generator.config.Configuration;
import org.mybatis.generator.config.xml.ConfigurationParser;
import org.mybatis.generator.exception.InvalidConfigurationException;
import org.mybatis.generator.exception.XMLParserException;
import org.mybatis.generator.internal.DefaultShellCallback;

/**
 * <dl>
 *    <dt><b>Title:</b></dt>
 *    <dd>
 *    	mybatis-generator逆向框架代码生成工具
 *    </dd>
 *    <dt><b>Description:</b></dt>
 *    <dd>
 *    	<p>none
 *    </dd>
 * </dl>
 *
 * @author Administrator
 * @version 1.0, 2015年6月18日
 * @since record
 *
 */
public class MybatisGeneratorMain {
	/**
	 * main方法
	 * @param args
	 */
    public static void main(String[] args) {
        List<String> warnings = new ArrayList<String>();
        boolean overwrite = true;
        String genCfg = "/generatorConfig.xml";
        File configFile = new File(MybatisGeneratorMain.class.getResource(genCfg).getFile());
        ConfigurationParser cp = new ConfigurationParser(warnings);
        Configuration config = null;
        try {
            config = cp.parseConfiguration(configFile);
        } catch (IOException e) {
            e.printStackTrace();
        } catch (XMLParserException e) {
            e.printStackTrace();
        }
        DefaultShellCallback callback = new DefaultShellCallback(overwrite);
        MyBatisGenerator myBatisGenerator = null;
        try {
            myBatisGenerator = new MyBatisGenerator(config, callback, warnings);
        } catch (InvalidConfigurationException e) {
            e.printStackTrace();
        }
        try {
            myBatisGenerator.generate(null);
        } catch (SQLException e) {
            e.printStackTrace();
        } catch (IOException e) {
            e.printStackTrace();
        } catch (InterruptedException e) {
            e.printStackTrace();
        }
    }
}

generatorConfig.xml

generatorConfig.xml

<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE generatorConfiguration
  PUBLIC "-//mybatis.org//DTD MyBatis Generator Configuration 1.0//EN"
  "http://mybatis.org/dtd/mybatis-generator-config_1_0.dtd">

<generatorConfiguration>

  <!-- 配置mysql 驱动jar包路径.用了绝对路径 -->
  <classPathEntry location="C:/Users/Administrator/.m2/repository/mysql/mysql-connector-java/5.1.9/mysql-connector-java-5.1.9.jar" />

  <context id="DB2Tables" targetRuntime="MyBatis3">

    <!-- 为了防止生成的代码中有很多注释，比较难看，加入下面的配置控制 -->
    <commentGenerator>
      <property name="suppressAllComments" value="true" />
      <property name="suppressDate" value="true" />
    </commentGenerator>
    <!-- 注释控制完毕 -->

    <!-- 数据库连接 -->
    <jdbcConnection driverClass="com.mysql.jdbc.Driver"
        connectionURL="jdbc:mysql://127.0.0.1:3306/record?characterEncoding=utf8"
        userId="root"
        password="root">
    </jdbcConnection>

    <javaTypeResolver >
      <property name="forceBigDecimals" value="false" />
    </javaTypeResolver>

    <!-- 数据表对应的model 层  -->
    <javaModelGenerator targetPackage="com.gxx.record.base.vo" targetProject="D:/05.HeadWorkspace/record/src/main/java">
      <property name="enableSubPackages" value="true" />
      <property name="trimStrings" value="true" />
    </javaModelGenerator>

    <!-- sql mapper 隐射配置文件 -->
    <sqlMapGenerator targetPackage="com.gxx.record.base.mapping"  targetProject="D:/05.HeadWorkspace/record/src/main/java">
      <property name="enableSubPackages" value="true" />
    </sqlMapGenerator>

    <!-- 在ibatis2 中是dao层，但在mybatis3中，其实就是mapper接口 -->
    <javaClientGenerator type="XMLMAPPER" targetPackage="com.gxx.record.base.dao"  targetProject="D:/05.HeadWorkspace/record/src/main/java">
      <property name="enableSubPackages" value="true" />
    </javaClientGenerator>

    <!-- 要对那些数据表进行生成操作，必须要有一个. -->
    <table schema="record" tableName="user" domainObjectName="User"
        enableCountByExample="false" enableUpdateByExample="false"
        enableDeleteByExample="false" enableSelectByExample="false"
        selectByExampleQueryId="false">
    </table>

  </context>
</generatorConfiguration>

preRegistFtl.ftl

preRegistFtl.ftl

<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
	<head>
		<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
		<title>注册页面</title>
	</head>
	<body>
		<form action="/record/user/registFtl.htm" method="post">
			<table border="1">
				<tr><td>用户名：</td><td><input type="text" name="name"/></td></tr>
				<tr><td>密码：</td><td><input type="password" name="password"/></td></tr>
				<tr><td colspan="2" align="center"><input type="submit" value="提交"/></td></tr>
			</table>
		</form>
	</body>
</html>

preRegistJsp.jsp

preRegistJsp.jsp

<%@ page language="java" contentType="text/html; charset=UTF-8"
    pageEncoding="UTF-8"%>
<!DOCTYPE html PUBLIC "-//W3C//DTD XHTML 1.0 Transitional//EN" "http://www.w3.org/TR/xhtml1/DTD/xhtml1-transitional.dtd">
<html xmlns="http://www.w3.org/1999/xhtml">
	<head>
		<meta http-equiv="Content-Type" content="text/html; charset=utf-8" />
		<title>注册页面</title>
	</head>
	<body>
		<form action="/record/user/registJsp.htm" method="post">
			<table border="1">
				<tr><td>用户名：</td><td><input type="text" name="name"/></td></tr>
				<tr><td>密码：</td><td><input type="password" name="password"/></td></tr>
				<tr><td colspan="2" align="center"><input type="submit" value="提交"/></td></tr>
			</table>
		</form>
	</body>
</html>

result.ftl

result.ftl

<html>
<body>
	<p>This is my result:<br> ${userDto.success?string('true','false')}</p>
	<p>This is my message:<br> ${userDto.message}</p>
</body>
</html>

web.xml

web.xml

<!DOCTYPE web-app PUBLIC
 "-//Sun Microsystems, Inc.//DTD Web Application 2.3//EN"
 "http://java.sun.com/dtd/web-app_2_3.dtd" >

<web-app>
    <display-name>Archetype Created Web Application</display-name>

    <!-- Context Configuration locations for Spring XML files -->
    <context-param>
        <param-name>contextConfigLocation</param-name>
        <param-value>
        	classpath*:/application-*.xml,
		</param-value>
    </context-param>

    <filter>
        <filter-name>encodingFilter</filter-name>
        <filter-class>org.springframework.web.filter.CharacterEncodingFilter</filter-class>
        <init-param>
            <param-name>encoding</param-name>
            <param-value>UTF-8</param-value>
        </init-param>
        <init-param>
            <param-name>forceEncoding</param-name>
            <param-value>true</param-value>
        </init-param>
    </filter>

    <filter-mapping>
        <filter-name>encodingFilter</filter-name>
        <url-pattern>/*</url-pattern>
    </filter-mapping>

    <!-- serlvet listeners -->
    <listener>
        <listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
    </listener>
     <listener>
        <listener-class>org.springframework.web.util.IntrospectorCleanupListener</listener-class>
    </listener>

    <servlet>
        <servlet-name>dispatcher</servlet-name>
        <servlet-class>org.springframework.web.servlet.DispatcherServlet</servlet-class>
       <init-param>
			<param-name>contextConfigLocation</param-name>
			<param-value>classpath*:/spring-mvc.xml</param-value>
		</init-param>
        <load-on-startup>1</load-on-startup>
    </servlet>

 	<servlet-mapping>
        <servlet-name>dispatcher</servlet-name>
        <url-pattern>*.htm</url-pattern>
    </servlet-mapping>

    <!-- welcome file list config -->
 	<welcome-file-list>
  		<welcome-file>index.jsp</welcome-file>
 	</welcome-file-list>

    <jsp-config>
		<jsp-property-group>
			<display-name>JSPConfiguration</display-name>
			<url-pattern>*.jsp</url-pattern>
			<page-encoding>UTF-8</page-encoding>
		</jsp-property-group>
	</jsp-config>
</web-app>

index.jsp

index.jsp

<html>
<body>
<h2>Hello World!</h2>
</body>
</html>

pom.xml

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0" xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance" xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/maven-v4_0_0.xsd">
	<modelVersion>4.0.0</modelVersion>
	<groupId>com.gxx</groupId>
	<artifactId>record</artifactId>
	<packaging>war</packaging>
	<version>0.0.1-SNAPSHOT</version>
	<name>record Maven Webapp</name>
	<url>http://maven.apache.org</url>

	<!-- 项目属性 -->
	<properties>
		<!-- jar 版本设置 -->
		<spring.version>4.0.5.RELEASE</spring.version>
		<aspectjrt.version>1.6.9</aspectjrt.version>
		<aspectjweaver.version>1.6.1</aspectjweaver.version>
		<freemarker.version>2.3.20</freemarker.version>
		<mybatis.version>3.2.7</mybatis.version>
		<mybatis-spring.version>1.2.2</mybatis-spring.version>
		<mybatis-generator-core.version>1.3.2</mybatis-generator-core.version>
		<servlet-api.version>2.4</servlet-api.version>
		<jsp-api.version>2.0</jsp-api.version>
		<jstl.version>1.2</jstl.version>
		<standard.version>1.1.2</standard.version>
		<jackson-databind.version>2.4.0</jackson-databind.version>
		<jackson-annotations.version>2.4.0</jackson-annotations.version>
		<jackson-module-jaxb-annotations.version>2.4.0</jackson-module-jaxb-annotations.version>
		<jackson-core.version>2.4.0</jackson-core.version>
		<junit.version>4.11</junit.version>
		<log4j.version>1.2.16</log4j.version>
		<mysql-connector-java.version>5.1.9</mysql-connector-java.version>
		<commons-dbcp.version>1.4</commons-dbcp.version>
	</properties>

	<!-- scm软件配置管理 -->
	<scm>
		<connection>scm:svn:svn://121.43.104.34/gxx/trunk/record</connection>
		<developerConnection>scm:svn:svn://121.43.104.34/gxx/trunk/record</developerConnection>
	</scm>

	<dependencies>
		<!-- Spring -->
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-core</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-beans</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-context-support</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-aop</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-jdbc</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-web</artifactId>
			<version>${spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.springframework</groupId>
			<artifactId>spring-webmvc</artifactId>
			<version>${spring.version}</version>
		</dependency>

		<!-- aspectj -->
		<dependency>
			<groupId>org.aspectj</groupId>
			<artifactId>aspectjrt</artifactId>
			<version>${aspectjrt.version}</version>
		</dependency>
		<dependency>
			<groupId>org.aspectj</groupId>
			<artifactId>aspectjweaver</artifactId>
			<version>${aspectjweaver.version}</version>
		</dependency>

		<!-- freemarker -->
		<dependency>
			<groupId>org.freemarker</groupId>
			<artifactId>freemarker</artifactId>
			<version>${freemarker.version}</version>
		</dependency>

		<!-- mybatis -->
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis</artifactId>
			<version>${mybatis.version}</version>
		</dependency>
		<dependency>
			<groupId>org.mybatis</groupId>
			<artifactId>mybatis-spring</artifactId>
			<version>${mybatis-spring.version}</version>
		</dependency>
		<dependency>
			<groupId>org.mybatis.generator</groupId>
			<artifactId>mybatis-generator-core</artifactId>
			<version>${mybatis-generator-core.version}</version>
		</dependency>

		<!-- j2ee基础 -->
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>servlet-api</artifactId>
			<version>${servlet-api.version}</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet.jsp</groupId>
			<artifactId>jsp-api</artifactId>
			<version>${jsp-api.version}</version>
			<scope>provided</scope>
		</dependency>
		<dependency>
			<groupId>javax.servlet</groupId>
			<artifactId>jstl</artifactId>
			<version>${jstl.version}</version>
		</dependency>
		<dependency>
			<groupId>taglibs</groupId>
			<artifactId>standard</artifactId>
			<version>${standard.version}</version>
		</dependency>

		<!-- jackson -->
		<dependency>
			<groupId>com.fasterxml.jackson.core</groupId>
			<artifactId>jackson-databind</artifactId>
			<version>${jackson-databind.version}</version>
		</dependency>
		<dependency>
			<groupId>com.fasterxml.jackson.core</groupId>
			<artifactId>jackson-annotations</artifactId>
			<version>${jackson-annotations.version}</version>
		</dependency>
		<dependency>
			<groupId>com.fasterxml.jackson.module</groupId>
			<artifactId>jackson-module-jaxb-annotations</artifactId>
			<version>${jackson-module-jaxb-annotations.version}</version>
		</dependency>
		<dependency>
			<groupId>com.fasterxml.jackson.core</groupId>
			<artifactId>jackson-core</artifactId>
			<version>${jackson-core.version}</version>
		</dependency>

		<!-- log4j -->
		<dependency>
			<groupId>log4j</groupId>
			<artifactId>log4j</artifactId>
			<version>${log4j.version}</version>
		</dependency>

		<!-- junit -->
		<dependency>
			<groupId>junit</groupId>
			<artifactId>junit</artifactId>
			<scope>test</scope>
			<version>${junit.version}</version>
		</dependency>

		<!-- mysql -->
		<dependency>
			<groupId>mysql</groupId>
			<artifactId>mysql-connector-java</artifactId>
			<version>${mysql-connector-java.version}</version>
		</dependency>

		<!-- dbcp -->
		<dependency>
			<groupId>commons-dbcp</groupId>
			<artifactId>commons-dbcp</artifactId>
			<version>${commons-dbcp.version}</version>
		</dependency>
	</dependencies>

	<!-- 设定除中央仓repo1.maven.org/maven2/)外的其他仓库,按设定顺序进行查 -->
	<repositories>
		<!-- nexus私服仓库 -->
		<repository>
			<id>nexus</id>
			<name>Team Nexus Repository</name>
			<url>http://121.43.104.34:8081/nexus/content/groups/public</url>
		</repository>
		<repository>
			<id>offical</id>
			<name>Maven Official Repository</name>
			<url>http://repo1.maven.org/maven2</url>
			<snapshots>
				<enabled>false</enabled>
			</snapshots>
		</repository>
		<repository>
			<id>spring-milestone</id>
			<name>Spring Maven MILESTONE Repository</name>
			<url>http://maven.springframework.org/milestone</url>
		</repository>
		<repository>
			<id>jboss</id>
			<name>Jboss Repository</name>
			<url>http://repository.jboss.org/nexus/content/groups/public-jboss/</url>
			<snapshots>
				<enabled>false</enabled>
			</snapshots>
		</repository>
		<repository>
			<id>java.net</id>
			<name>Java.net Repository</name>
			<url>http://download.java.net/maven/2/</url>
			<snapshots>
				<enabled>false</enabled>
			</snapshots>
		</repository>
		<repository>
			<id>spring-release</id>
			<name>Spring Maven Release Repository</name>
			<url>http://repo.springsource.org/libs-release</url>
			<snapshots>
				<enabled>false</enabled>
			</snapshots>
		</repository>
	</repositories>

	<build>
		<finalName>record</finalName>
		<plugins>
			<!-- jdk编译插件 -->
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-compiler-plugin</artifactId>
				<version>2.0.2</version>
				<configuration>
					<source>1.6</source>
					<target>1.6</target>
					<encoding>utf8</encoding>
				</configuration>
			</plugin>
			<!-- scm软件配置管理插件 -->
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-scm-plugin</artifactId>
				<version>1.3</version>
			</plugin>
			<!-- 版本发布插件 -->
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-release-plugin</artifactId>
				<version>2.4</version>
				<configuration>
					<tagBase>svn://121.43.104.34/gxx/tags/record</tagBase>
					<branchBase>svn://121.43.104.34/gxx/branches/record</branchBase>
				</configuration>
			</plugin>
			<!-- 原型插件 -->
			<plugin>
				<groupId>org.apache.maven.plugins</groupId>
				<artifactId>maven-archetype-plugin</artifactId>
				<version>2.2</version>
			</plugin>
		</plugins>
	</build>

	<!-- 版本发布管理 -->
	<distributionManagement>
		<!-- release稳定版本 -->
		<repository>
			<id>nexus-releases</id>
			<name>Nexus Release Repository</name>
			<url>http://121.43.104.34:8081/nexus/content/repositories/releases/</url>
		</repository>
		<!-- snapshots快照版本 -->
		<snapshotRepository>
			<id>nexus-snapshots</id>
			<name>Nexus Snapshot Repository</name>
			<url>http://121.43.104.34:8081/nexus/content/repositories/snapshots/</url>
		</snapshotRepository>
	</distributionManagement>
</project>

SQL脚本

database.sql

CREATE DATABASE record;
USE record;
CREATE TABLE `user` (
  `id` INT(10) UNSIGNED NOT NULL AUTO_INCREMENT COMMENT '主键',
  `name` VARCHAR(50) NOT NULL COMMENT '姓名',
  `password` VARCHAR(32) NOT NULL COMMENT '密码',
  `create_date` VARCHAR(8) NOT NULL COMMENT '创建日期',
  `create_time` VARCHAR(6) NOT NULL COMMENT '创建时间',
  PRIMARY KEY  (`id`)
) ENGINE=InnoDB AUTO_INCREMENT=5 DEFAULT CHARSET=utf8 COMMENT='用户表'

打包下载

record.zip

使用说明

怎么在eclipse中运行项目

本地需要安装maven3
打包下载
导入eclipse中，自动Build Project,第一次下载maven依赖耗时较长，请耐心等待
修改相应配置，比如log4j.properties中的绝对路径
开启mysql，运行上面的database.sql
部署到eclipse绑定的tomcat中，启动tomcat
启动成功之后，访问http://localhost/record/，看到Hello World!，表示项目成功运行
访问http://localhost/record/user/preRegistFtl.htm和http://localhost/record/user/preRegistJsp.htm进行测试

使用mybatis-generator逆向生成框架代码

修改generatorConfig.xml中的配置
1. 驱动jar包路径
2. 数据库连接
3. 模型层配置
4. 映射配置
5. mapper接口配置
6. 需要生成的数据表配置
运行MybatisGeneratorMain.java
刷新目标目录中是否有新文件生成vo,mapper,dao
注意：重复生成vo和dao会覆盖原文件，mapper会继续写在文件后面，所以重复生成程序运行会出错，需要手动删除再重新生成

wiki

用户工具

站点工具

目录

springmvc+mybatis+spring+freemarker+maven示例项目

框架版本

项目结构

源代码

UserMapper.java

UserMapper.xml

User.java

BaseDto.java

UserDto.java

UserService.java

UserServiceImpl.java

UserController.java

application-context.xml

jdbc.properties

log4j.properties

mybatis.xml

spring-mvc.xml

MybatisGeneratorMain.java

generatorConfig.xml

preRegistFtl.ftl

preRegistJsp.jsp

result.ftl

web.xml

index.jsp

pom.xml

SQL脚本

打包下载

使用说明

怎么在eclipse中运行项目

使用mybatis-generator逆向生成框架代码

页面工具
